48F 1in3out Vertical Heat-Shrink Fiber Optic Closure

48F 1in3out Vertical Heat-Shrink Fiber Optic Closure

Product Item : YW-MS04R
Category： Dome Fiber Optic Splice Closure
Material Type：UV resistant PP、ABS&PC
Cable Ports Quantity, total：1 oval port (2 cables) + 3 round ports
Outside Dimensions (Max.)：300×Ø180mm
Circular ports and cable dia, (max.)： 3×Ø16mm
Oval port can cable dia. (max.)：1×Ø25 or 2×Ø21
Splice tray count：4pcs
Splice capacity for each tray：6/12FO
Total Splice： 48 FO
INQUIRY EMAIL

Product Description: Fiber Optic Closure,Fiber Optic Joint Closure,Enclosure Splice FTTH Use Optic Joint Box Junction Box

Product name	Fiber Optic Joint Closure	IP Rate	IP68
Product Model	FCBF-48S	Product Size	305*φ185mm
Ports	1 inlet port 34*22mm 3 out port φ21mm	Packing Quantity	8 pcs / carton 684042cm 15.5kg
Max Core	12F/tray, max capacity 48F(4 trays)	Material	Polymer Plastic+Fiber
Installation Type	Vertical	G. weight	2.0kg

Feature: Fiber Optic Closure,Fiber Optic Joint Closure,Enclosure Splice FTTH Use Optic Joint Box Junction Box

1. Suitable for ordinary fiber and ribbon fiber.

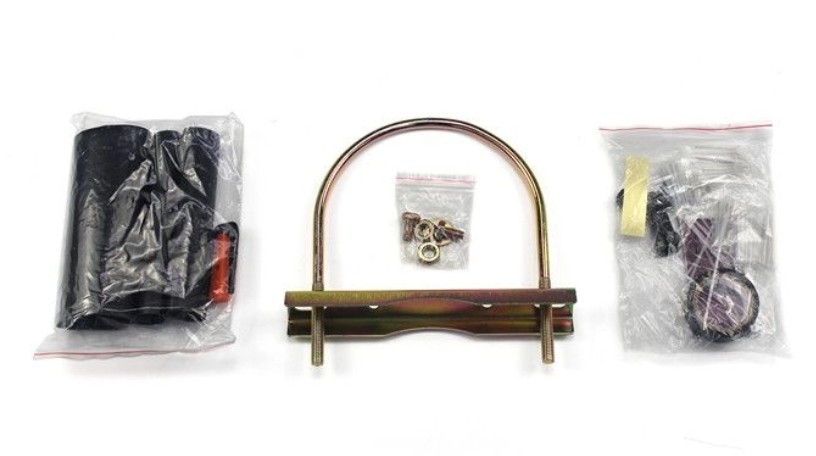

2.Fully kitted with all parts for convenient operation.

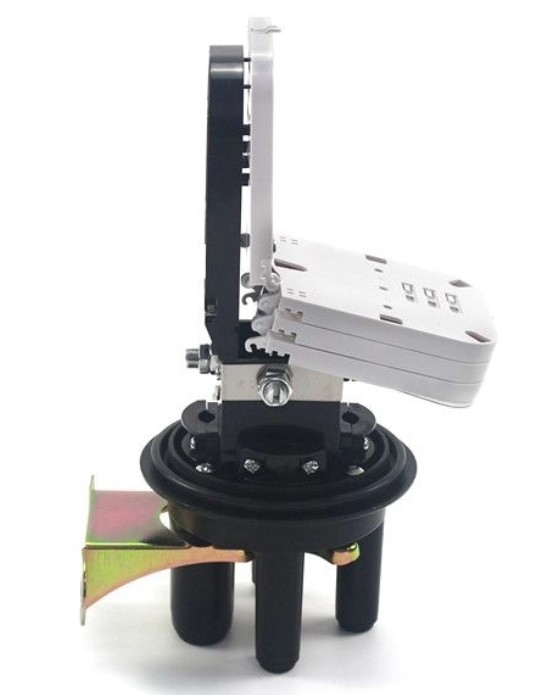

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up severe condition of moisture,vibration and extreme temperatures.
